THERM Home S wired thermostat

Type: Wire
Order No.: 44540

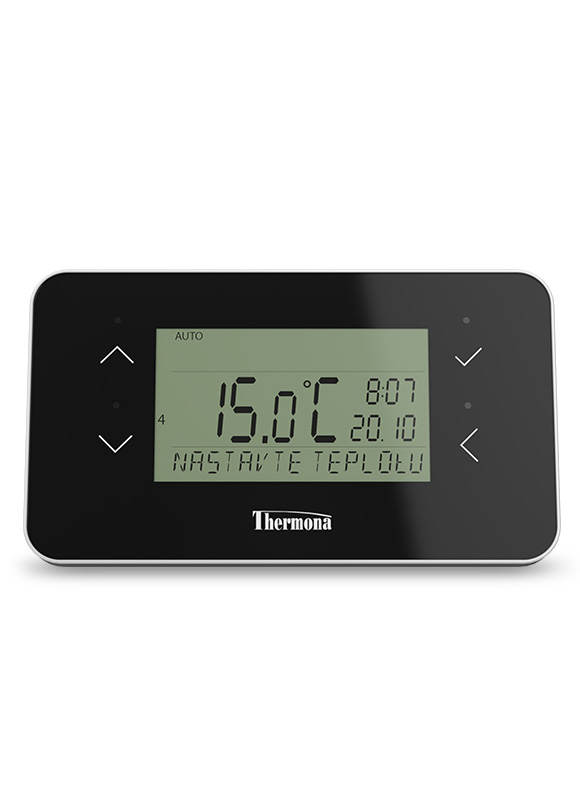

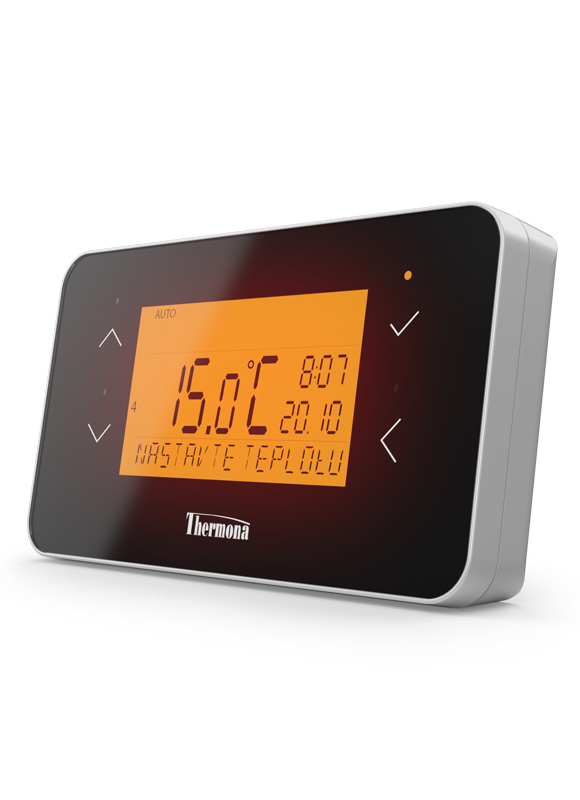

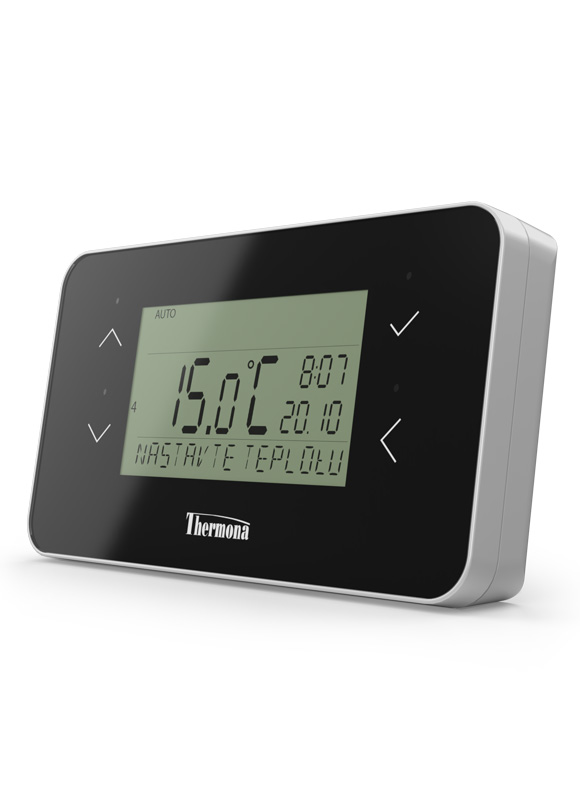

THERM Home S is a digital room thermostat with a backlit display for automatic control of heating systems in houses and apartments with their own gas or electric boiler. The advantage is the quick change of the desired temperature at the touch of a button and the possibility of setting a weekly program with 6 temperature changes per day. The excellent functionality is underlined by the modern, compact and practical design. The white thermostat body is complemented by a black face with an elegant gloss.

Install the thermostat in a suitable location where its operation will not be affected by direct flow of warm air from the heater, sunlight or other interference. Also avoid mounting on an outside wall. The design of the thermostat allows for permanent installation on the wall, for example through a wiring box or directly through the wall plugs. Place the thermostat in a so-called reference room, e.g. the living room (depending on the temperature in this room the boiler will be switched).



Recommended retail price: on request

Class of temperature regulator - Directive EU No. 811/2013
  • Wired digital room thermostat
  • Large clear and backlit graphic display
  • Preset weekly program
  • Powered by 2x 1.5 V/AA alkaline batteries
  • Up to 6 temperature changes per day
  • Programming after 10 minutes and 0.5 °C
  • Can be programmed by day or in blocks of Mon-Fri, Sat-Sun and Mon-Sun
  • Short-term change of desired temperature
  • Output (potential-free contact) max. 5 A / 250 V AC
  • Intuitive navigation in the selected language (CZ / PL / EN / DE / RU / SK )
  • Function to test correct wiring
  • Automatic change of summer / winter time
  • HYSTEREZE setting option
  • Manual MANU mode
  • Permanent OFF switch-off
  • Anti-frost protection 3 °C
  • MODE ALLOWED
  • Low battery indication
  • Activation/deactivation of light and sound button indication
Technical data Unit THERM Home S
Class of temperature regulator according to the requirements of Commission Directive EU No. 811/2013 - IV
The contribution of temperature controllers for seasonal energy efficiency * % 2
Order number - 44540
* The contribution of temperature controllers for seasonal energy efficiency of heating kits consisting of heater for heating inside areas, temperature controller and solar equipment or sets of combined heaters, temperature controller and solar equipment
