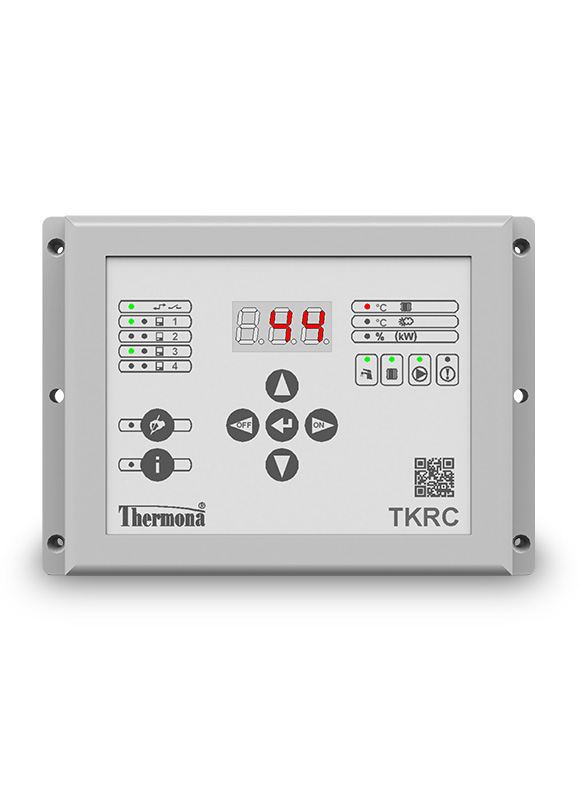

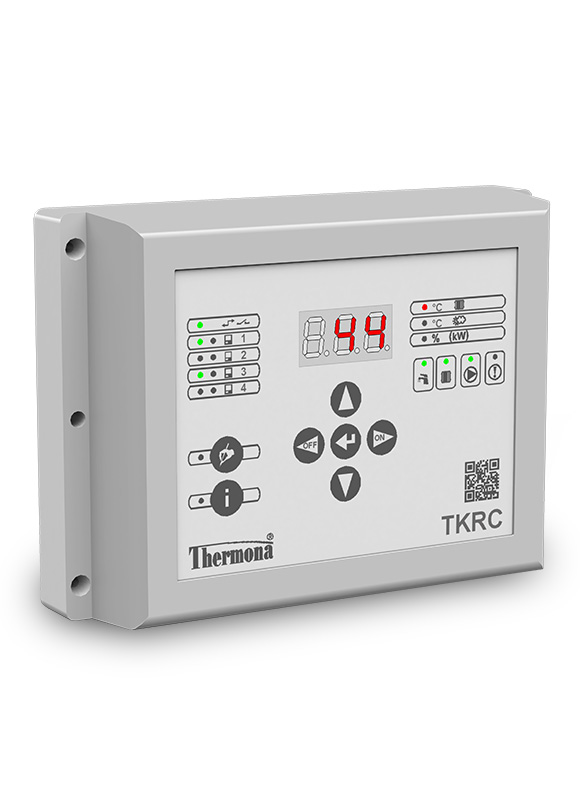

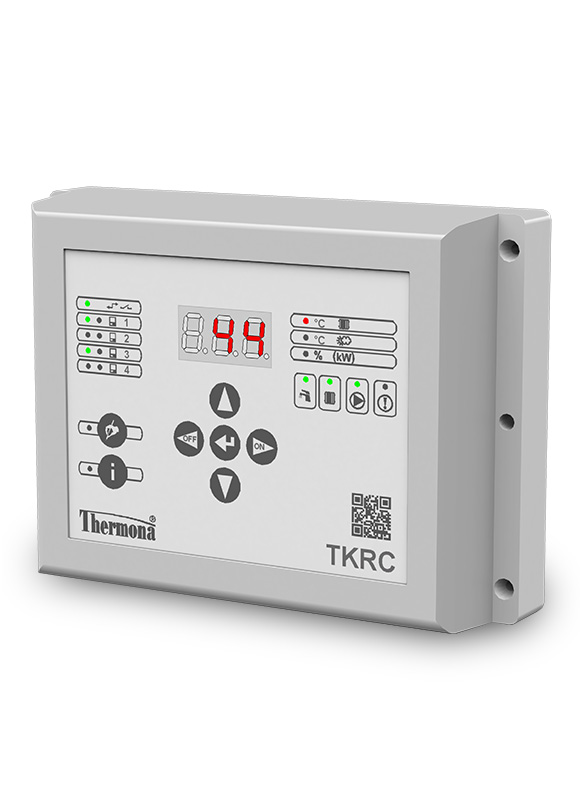

Cascade regulator THERM TKRC

Usage:	Cascade boiler room
Number of controlled boilers:	up to 4 boilers

In order to communicate THERM boilers in cascade, in connection with different control systems, we have developed our own cascade controller THERM TKRC. The cascade controller THERM TKRC is based on the popular cascade controller THERM TKR. It is mainly used as an intermediary for communication between individual boilers in a cascade and a higher-level control system such as THERM VPT or a single-zone controller. However, it can also be used completely independently for selected applications.

The main feature of the THERM TKRC controller is its compactness, which makes it suitable for installation in smaller boiler rooms with a maximum of four boilers. All operation, diagnostics and settings are carried out directly from the controller's control panel, which features a three-digit numeric display. All THERM boilers with DIMS, H-DIMS, condensing and electric boilers can be connected to the cascade.

Recommended retail price: on request

Do you have a question? Do you need installation?

Cascade control of up to four boilers

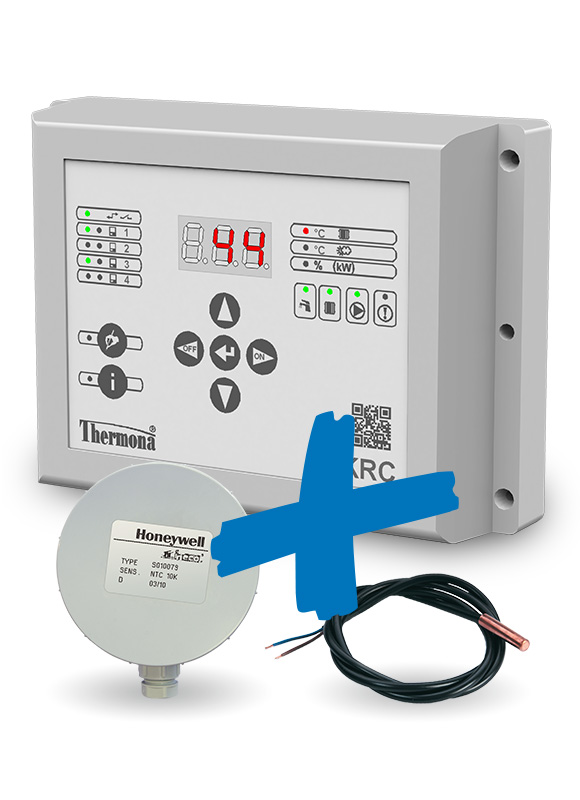

Measurement of the cascade outlet water temperature by NTC sensor
Switching of the system pump of the cascade
Possibility to connect an NTC sensor for measuring the outdoor temperature
Possibility of receiving outdoor temperature data from one of the controlled boilers
Support for TV heating controlled by slave boilers
Possibility of controlling the cascade by a parent OT/+ controller
Possibility of autonomous operation - control by ON/OFF controller (voltage-free contact) or equithermal control with blocking of operation by voltage-free contact
Built-in three-digit numeric display and seven-button keypad
LED operation and fault indication
Mains power supply, universal power supply 120 - 230 Vdc, 50 - 60 Hz
Wall mounted, durable compact enclosure
