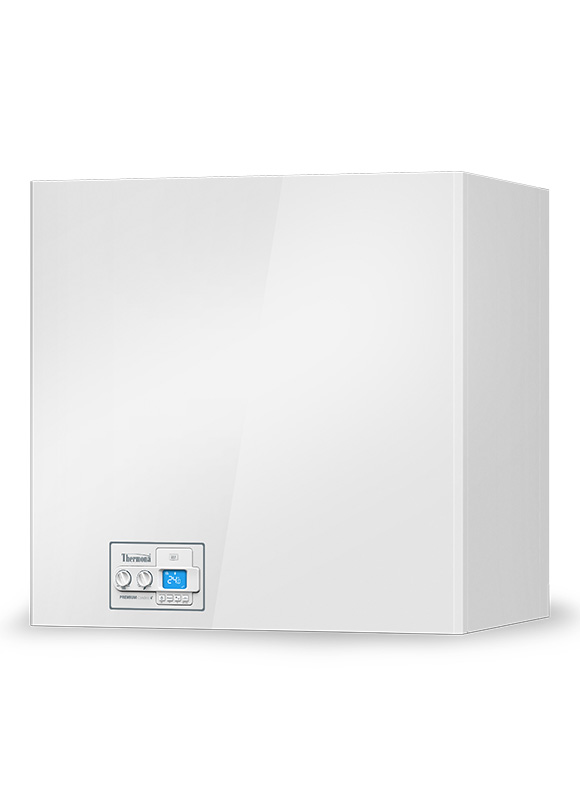

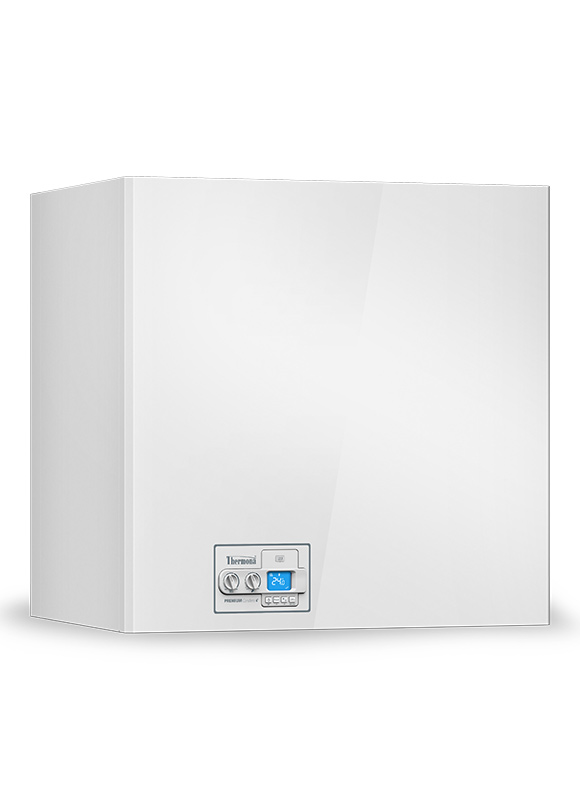

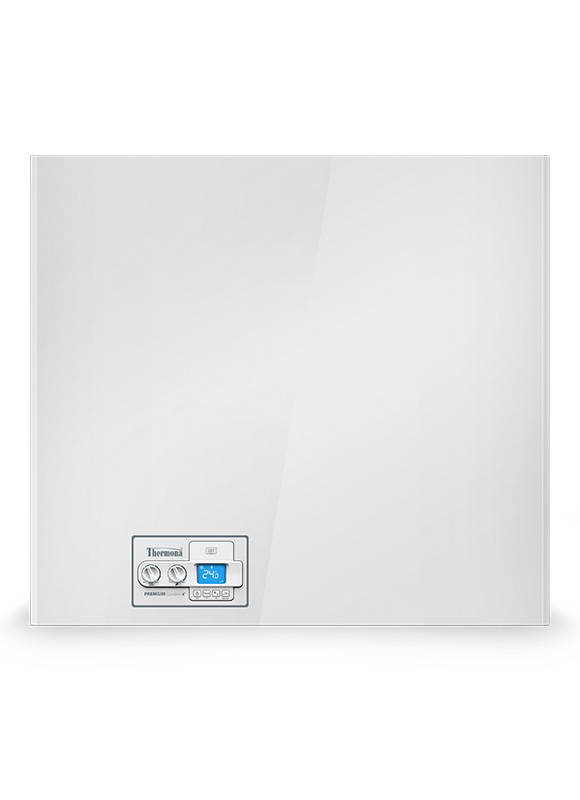

THERM 25 KDZ 5

Modern and technically most advanced boiler of our production program. Thanks to its large scope of output modulation from 2.5 to 25.0 kW it can be used in various buildings. Its continuous dosage of output ensures the highest thermal as well as economic comfort, of course with minimum effect on the environment. Thanks to the new conception of multiphase ventilator the considerable noise limitation was achieved. Last but not least the control electronics was updated, it includes its auto-diagnostics and newly enables to optimise the program map with regard to the course of burning.

Also the condensation boiler body was innovated. The condensation body combines the exchanger with cooling front burner wall equipped with brand new type generation of burner BLUEJET®.

Boiler version THERM 25 KDZ 5 is determined for heating and supply water warming in integrated stainless tank of volume 55 litres.

Recommended retail price: on request

eu_flagThe product THERM 25 KDZ 5 complies all legislative, safety, healthy and environmental requirements of the European Union and CE mark enables the free movement of products within the market of the European Economic Area.

Emission category NOx 6 View the ErP label View the ErP label
  • Extraordinary environment friendly operation – class NOx 6
  • Condensation body with brand new type of burner BLUEJET®
  • Large scope of modulation from 2,5 kW to 25,0 kW
  • Nominal output for warm water warming 23,0 kW
  • New conception of multiphase ventilator
  • Noise limitation at higher revolutions
  • Electrically modulated SGV gas valve
  • Modulated circulating pump with high effectiveness
  • New control unit with auto-diagnostics
  • Electronics get feedback information on the burning condition and performs the optimisation of map programing
  • The product is determined for heating system and supply water warming in its integrated tank
  • Volume of integrated stainless tank 55 litres
Technical data Unit THERM 25 KDZ 5
Class of seasonal energy efficiency of heating - A
Energy efficiency class of water heating - A
Declared loading profile - XL
Nominal thermal input power kW 23,5
Min. – max. thermal output for heating kW 2.5 - 24.9
Max. thermal output for DHW kW 23.0
Fuel - natural gas / propane
Gas consumption - natural gas m3/h 0.26 - 2.50
Gas consumption - propane m3/h 0.10 - 0.92
Min. – max. overpressure of heating system bar 0.8 - 3.0
Maximum input pressure of heating water °C 80
Boiler efficiency % 98 - 106
Volume of expansion unit l 7
Volume of the integrated tank l 55 (stainless)
Volume of expansion unit of DHW l 2
Nominal supply voltage / frequency V/Hz 230/50~
Auxiliary electricity at rated heat input W 68.2
Level of coverage of electrical part - IP 41 (D)
Diameter of smoke flue mm 60/100, 80/125, 2x80
Dimensions: height / width / depth mm 725 / 800 / 385
Weight of boiler kg 54
Order number - 1099
