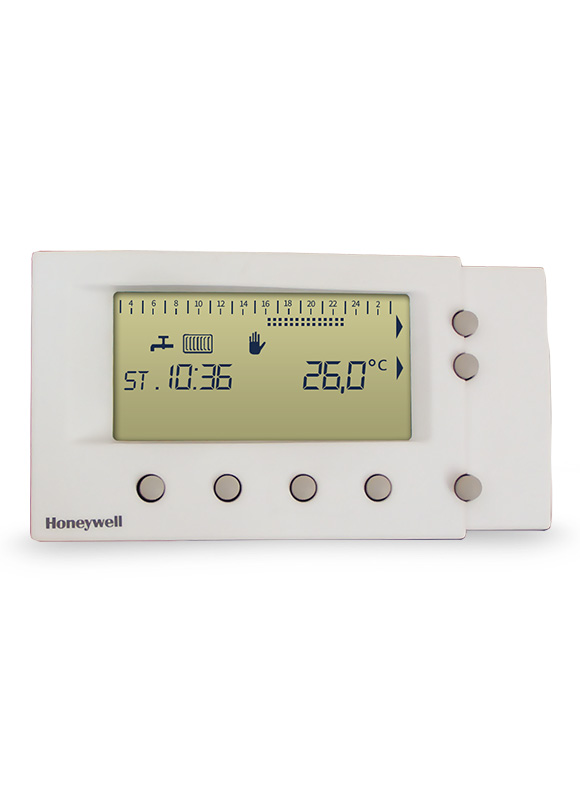

Regulator CR 04

Type: Wire
Order No.: 43452

The digital CR 04 programmable regulator represents a generation of digital room units with the configured temperature room regulator using OpenTherm communication protocol. The interior unit is located in the reference room and controls the heating on the basis of the outdoor temperature and adjusts the heating on the basis of the indoor temperature (mixed regulation).

These units can be used as the main part of the system and/or as accessories to systems fitted with the respective interface for communication with this type of unit. It is used to control boilers with the option of communication through OpenTherm protocol supported by all THERM boilers.



Recommended retail price: on request

Class of temperature regulator - Directive EU No. 811/2013
  • Displays the operating statuses of the boiler unit
  • 3 adjustable heating levels
  • 5 basic heating programs set in production
  • Error diagnostics
  • Option to set 7-day heating program
  • Option to set 7-day program for heating water
  • Function for immediate change of temperature
  • Two-conductor connection and supply from the boiler
  • Option to control the Thermona cascade boiler room
Technical data Unit CR 04
Class of temperature regulator according to the requirements of Commission Directive EU No. 811/2013 - VI
The contribution of temperature controllers for seasonal energy efficiency * % 4
Order number - 43559
* The contribution of temperature controllers for seasonal energy efficiency of heating kits consisting of heater for heating inside areas, temperature controller and solar equipment or sets of combined heaters, temperature controller and solar equipment
