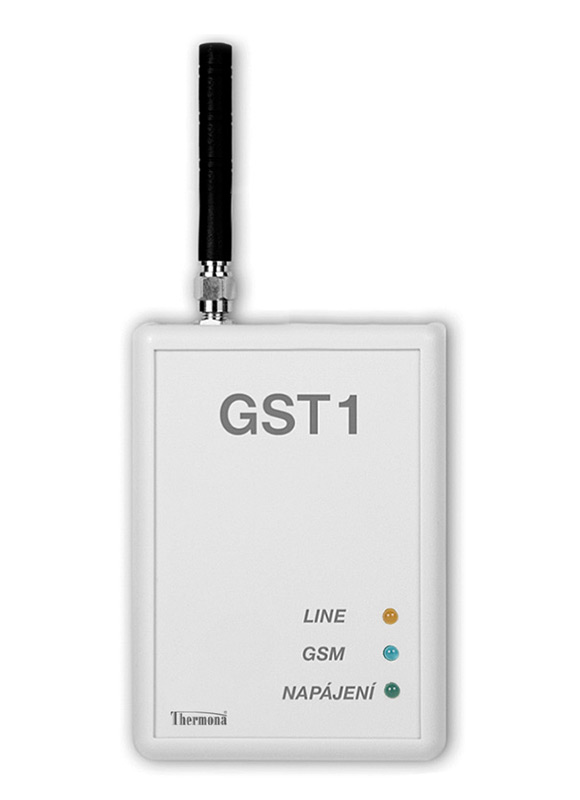

GSM module GST 1

Compatibility: PT59X
Order No.: 43460

The GSM module GST 1 is used for remote regulator control. You can regulate the room temperature or find out the current status of the heating system components by sending an SMS message from your mobile phone. Information about changes done is provided by an SMS message sent to the designated telephone number.

Control and notifications from the heating system via the GSM module will be appreciate both by domestic boiler room caretakers and common users who have installed heating systems in their cottages or other occasionally visited objects. The module can be installed on the wall using a double-sided tape or Velcro.


Recommended retail price: on request

  • Well-arranged LED indication
  • Optional power backup connection (not included in the package)
  • Remote heating system control (temperature regulation)
  • Checking the current boiler status
  • Designed for use in the interior

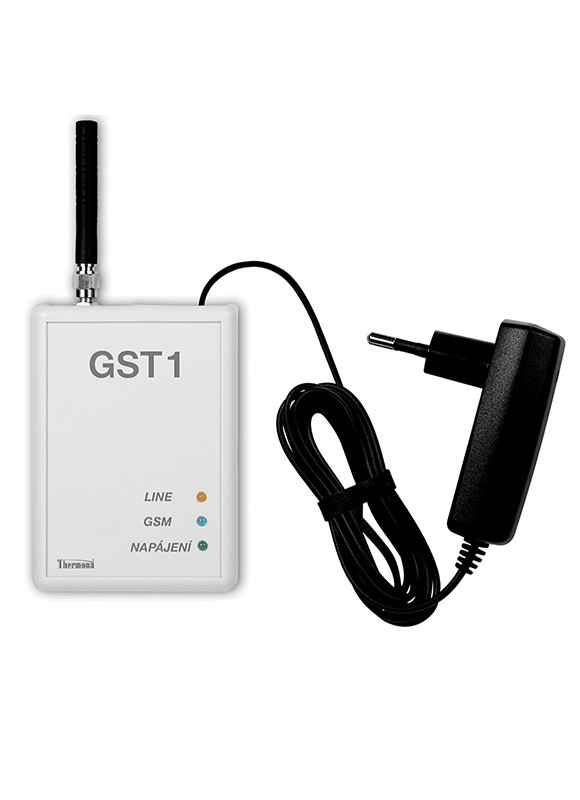

  • Package content: GST 1 module, AD05-DU source, RJ12 data cable
Technical data Units Module GST 1
Power supply V / A +5 / 2,5
GSM module type - SIM900
GSM module MHZ 900/1800
Data cable - RJ12
GSM antenna dB 1
Dimensions (antenna excluded) mm 110 / 75 / 25
Order No. - 43460
