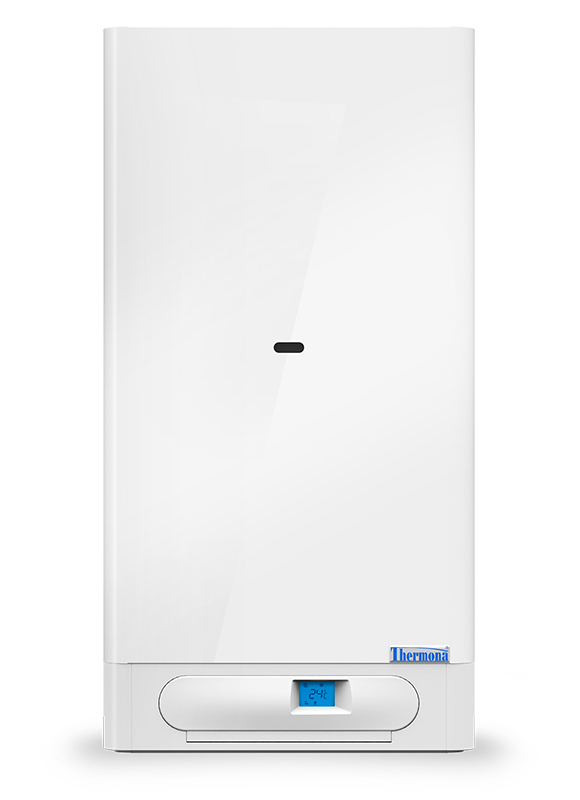

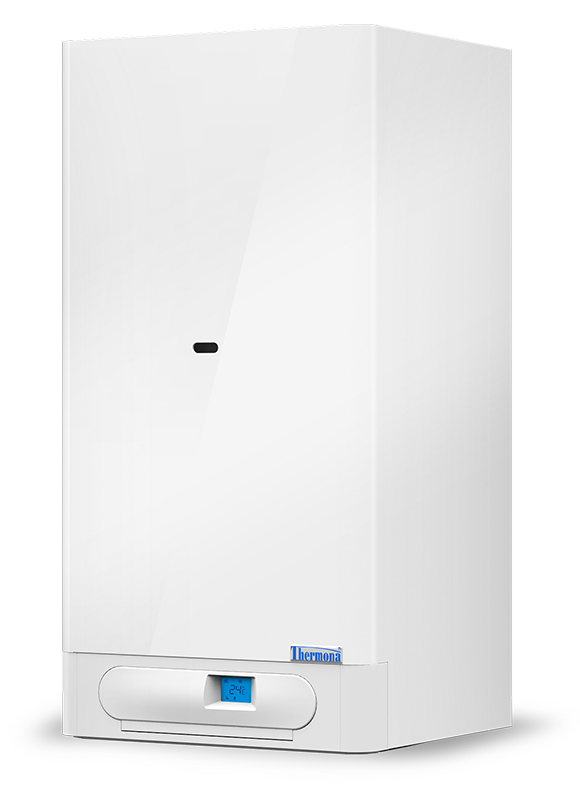

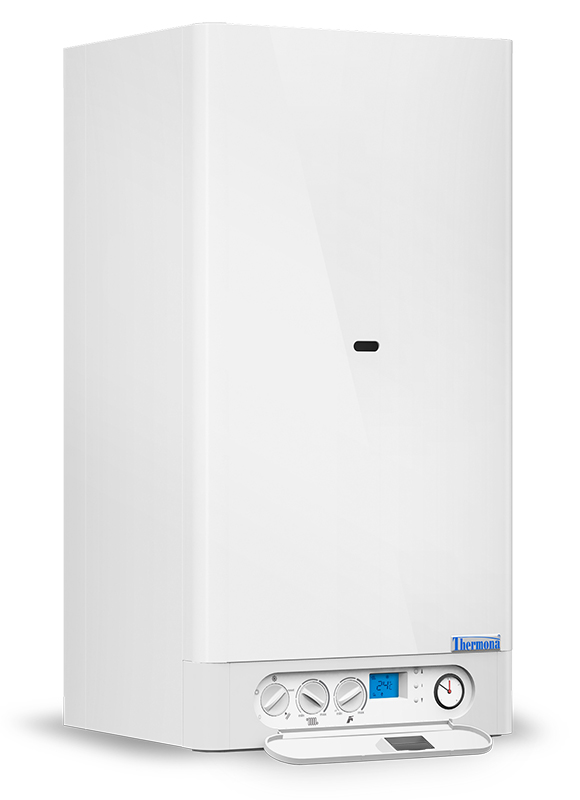

THERM PRO 14 XZ.A

The small gas boiler THERM PRO 14 XZ.A can heat water in an external reservoir and in water-heat systems it works in the same way as heating only boilers. The external reservoir is heated by an integrated three-way valve that is part of the wall boiler. Two types of the boiler are available according to the type of fuel, i.e. boiler combustion natural gas or propane.

The boiler is for heating of buildings with a heat loss up to 14.0 kW. When developing and manufacturing the emphasis was on maximum efficiency and minimum emissions into the air. With its wide range of types and reservoir volumes this boiler can produce relatively high amounts of hot water to satisfy both usual households as well as demanding clients requiring high comfort.



Recommended retail price: on request

eu_flagThe product THERM PRO 14 XZ.A complies all legislative, safety, healthy and environmental requirements of the European Union and CE mark enables the free movement of products within the market of the European Economic Area.

Emission category NOx 5 View the ErP label View the ErP label
  • The boiler contains a three-way valve for alternatively heating the heating system and the hot water storage tank
  • Water cooled low-emission burner
  • Simple and intuitive control
  • Fluent boiler output regulation
  • Can be regulated according to the spatial or outdoor temperature (equitherm regulation)
  • Can be controlled by a room thermostat or intelligent room regulator through OpenTherm+
  • The boilers have a ‘low-emission burner’ with very low CO and NOx emissions
  • As standard the boilers have a white cladding
Technical data Unit THERM PRO 14 XZ.A
Class of seasonal energy efficiency of heating - C
Energy efficiency class of water heating - B
Declared loading profile - L
Nominal thermal input power kW 15.25
Min. – max. thermal output for heating kW 5.0 - 14.0
Fuel - natural gas / propane
Gas consumption - natural gas m3/h 0.58 - 1.62
Gas consumption - propane m3/h 0.21 - 0.59
Min. – max. overpressure of heating system bar 0.8 - 3.0
Maximum input pressure of heating water °C 80
Boiler efficiency % 92
Volume of expansion unit l 7
Nominal supply voltage / frequency V/Hz 230/50~
Auxiliary electricity at rated heat input W 80
Level of coverage of electrical part - IP 44 (D)
Diameter of smoke flue mm 110
Dimensions: height / width / depth mm 800 / 430 / 275
Weight of boiler kg 30
Order number - 1001.7
