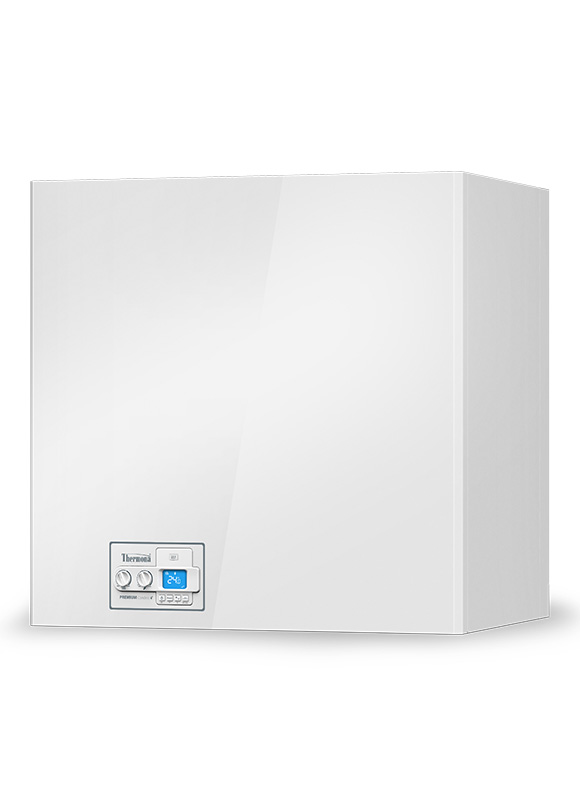

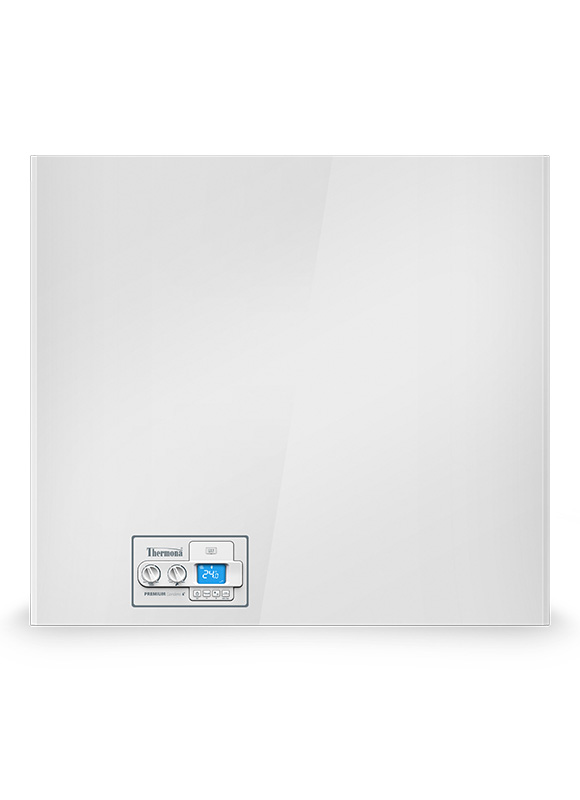

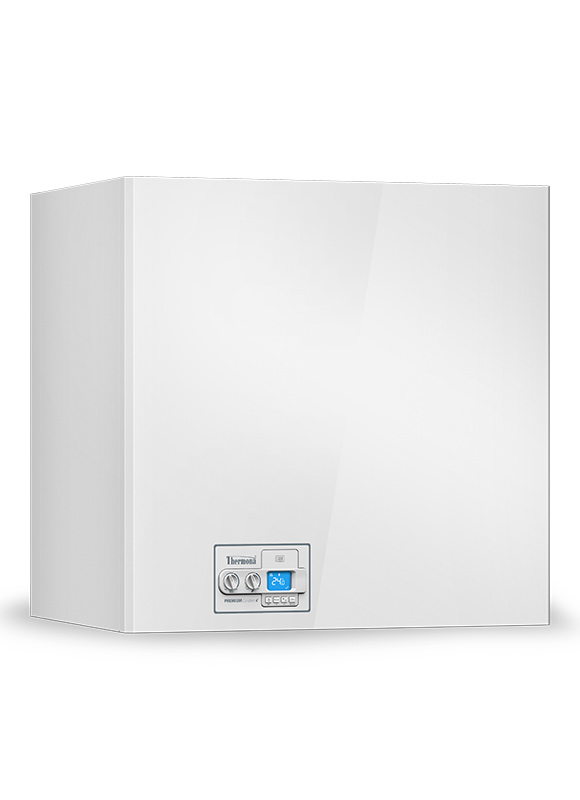

THERM 18 KDZ 5

The THERM 18 condensing boiler series combines top technology, based in the latest findings in the field, and state-of-the-art components allowing active control of the combustion operation with regard to gas consumption, preventing unnecessary energy loss. The boilers have stainless exchanger with cooled front burner wall. The new type of the gas valve in combination with the burner provides a high level modulation. The regulation ratio of this type of boiler is then 1:10 and the minimum output starts at 1.8 kW. The boiler represents the PREMIUM Condens series with superior technological design.

Thanks to the broad range of output modulation, from 1.8 kW to 19.0 kW, the boilers are designed to be used in low-energy buildings with low heat loss. The THERM 18 KDZ 5 version is designed for central heating and for heating household water in an integrated stainless tank with a capacity of 55 litres.



Recommended retail price: on request

eu_flagThe product THERM 18 KDZ 5 complies all legislative, safety, healthy and environmental requirements of the European Union and CE mark enables the free movement of products within the market of the European Economic Area.

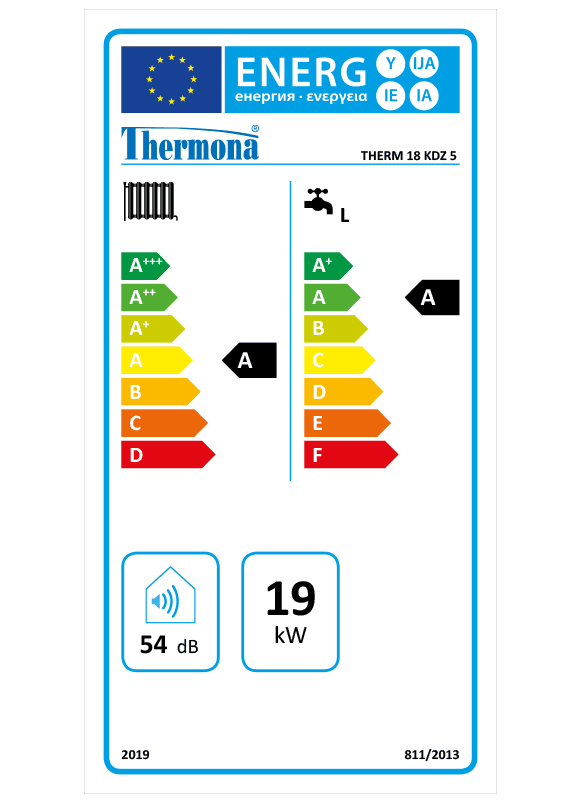

Emission category NOx 6 View the ErP label View the ErP label
  • The boiler includes a stainless tank with a capacity of 55 litres
  • The product is designed for central heating and for heating household water in an integrated storage tank
  • Exceptionally ecological operation – Class NOx 6
  • Condensing body with a brand new type of boiler: BLUEJET®
  • Broad modulation range: from 1.8 kW to 19.0 kW
  • New design of a multiphase fan
  • Noise reduction at higher speed
  • Electrically modulated SGV gas valve
  • Modulated high-efficiency circulating pump
  • New control unit with auto-diagnostics
  • The electronic system receives feedback about the status of burning and performs optimisation of the program map
  • Suitable combination with the floor heating system
  • Boiler communication and regulator via OpenTherm+
Technical data Unit THERM 18 KDZ 5
Class of seasonal energy efficiency of heating - A
Energy efficiency class of water heating - A
Declared loading profile - L
Nominal thermal input power kW 18.0
Min. – max. thermal output for heating kW 1.8 - 19.0
Max. thermal output for DHW kW 17.5
Fuel - natural gas / propane
Gas consumption - natural gas m3/h 0.181 - 1.749
Gas consumption - propane m3/h 0.070 - 0.711
Min. – max. overpressure of heating system bar 0.8 - 3.0
Maximum input pressure of heating water °C 80
Boiler efficiency % 99 - 106
Volume of expansion unit l 7
Volume of the integrated tank l 55 (stainless)
Volume of expansion unit of DHW l 2
Nominal supply voltage / frequency V/Hz 230/50~
Auxiliary electricity at rated heat input W 68.2
Level of coverage of electrical part - IP 41 (D)
Diameter of smoke flue mm 60/100, 80/125, 2x80
Dimensions: height / width / depth mm 725 / 800 / 385
Weight of boiler kg 54
Order number - 10107
