Type: wall hung
Volume: 55 l
Exchanger power: 25 kW

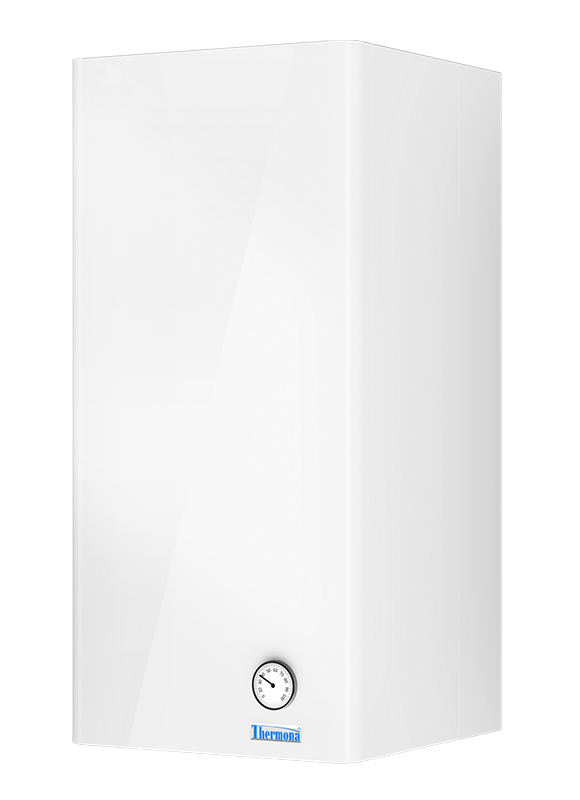

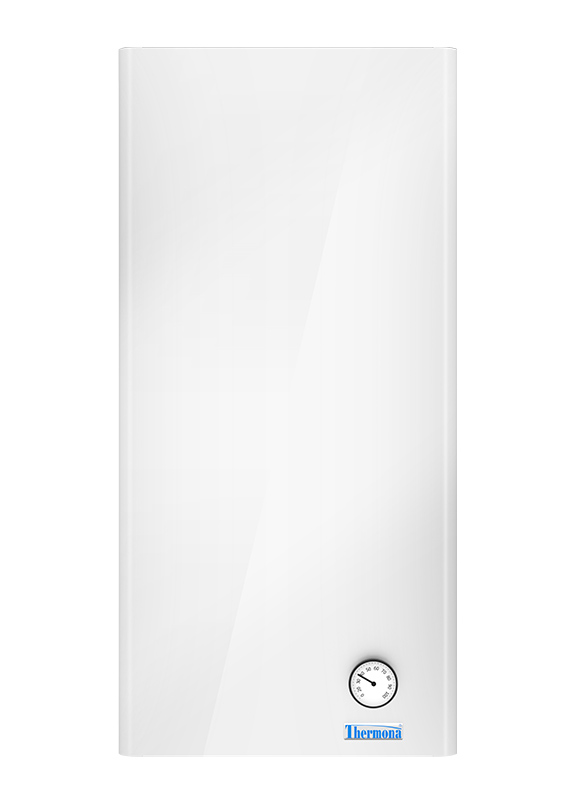

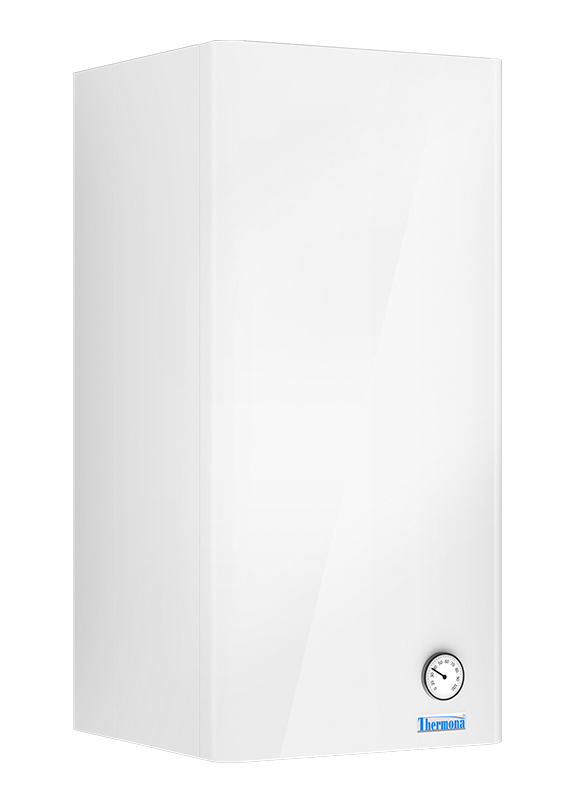

The THERM 55/Z indirect heating storage tank is constructed as a wall-mounted storage tank installed on the hanging bar mounted with the boiler on the wall using dowels. Storage tanks of this type are made of resistant stainless steel. An anode bar is mounted on the flange on the bottom of the tank.

Through their construction and the number of available options, THERM storage tank water heaters provide economical preparation of water via energy from an external source. They are recommended for interior locations.


Energy Label
  • Storage tank made from resistant stainless steel
  • High-quality hard polyurethane foam is used for insulation
  • The storage tank includes an anode bar
  • The heater is constructed as wall-mounted on the bar mounted beside the boiler
  • From the aesthetic viewpoint, it completes the design of the boiler and forms one unit
Technical data Unit THERM 55/Z
Class of energy efficiency - C
Volume l 55
Exchanges output kW 25
Height / width / depth mm 830 / 400 / 375
Material - stainless
Order number - 14128.A

Time of heating in the THERM 55/Z storage tank

This table was compiled by empirical measurement of the time for heating a storage tank filled with cold water (10°C) and then heated to the temperature stated by the tank thermostat to 60°C. The times are in minutes.
Type of storage tank Heating of DHW Output of the boiler 14 kW Output of the boiler 20 kW Output of the boiler 28 kW Output of the boiler 45 kW
THERM 55/Z 50 °C 13′ 9′ not recommended
