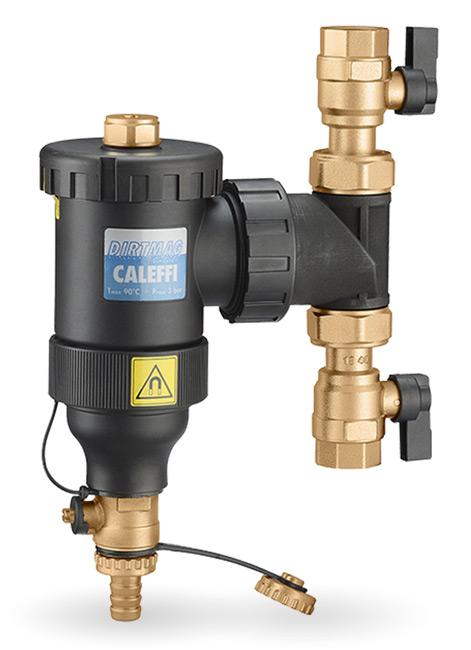

Impurity separator with magnet

Connection: 5/4"
Order No.: 43697

The impurity separator with a 5/4" magnet is used for separating impurities – sand and corrosion, circulating inside the heating system. The main difference is the connection in the size of 5/4", or 1 1/4". The separator is designed for heating systems with lower heat losses. Impurities are collected in a large sludge removing chamber with a low cleaning frequency. The separator is especially versatile since it can be installed on both horizontal and vertical pipeline.

The impurity separator is equipped with a removable magnetic ring for easy and quick separation of ferrous impurities. The whole filter is made of resistant composite material, designed for hot-water systems.



Recommended retail price: on request

  • Sediment separator with a magnetic ring
  • Body from resistant composite material
  • Inner connecting threads
  • Adjustable connection to both horizontal and vertical pipeline
  • Equipped with a discharge valve with a pipe-to-hose adapter
Technical data Unit variant 5/4"
Maximum operating pressure bar 3
Connection - 5/4" = 1 1/4"
Temperature range °C 0 - 90
Order number - 43697
