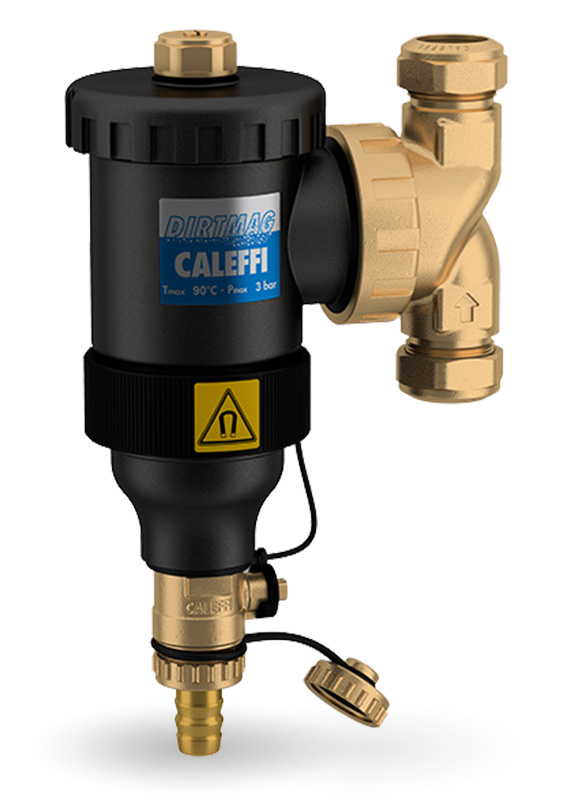

Impurity separator with magnet

Connection: 3/4", 1"
Order No.: 43566, 43567

The impurity separator separates impurities mostly formed by sand and corrosion particles that circulate in close-circuit systems, with very low pressure losses. Impurities are collected in a large sludge removing chamber with a low cleaning frequency, which can also be cleaned during operation. The device is available in two sizes, with a 3/4" and 1” connector.

The impurity separator is also equipped with a removable magnetic ring to separate ferrous impurities. The separator is made of resistant composite material; it is exceptionally versatile since it can be installed both onto a horizontal and vertical pipeline.


Recommended retail price - 3/4": on request
Recommended retail price - 1": on request

  • Sediment separator with a magnetic ring
  • Body from resistant composite material
  • Inner connecting threads
  • Adjustable connection to both horizontal and vertical pipeline
  • Equipped with a discharge valve with a pipe-to-hose adapter
Technical data Unit variant 3/4" variant 1"
Maximum operating pressure bar 3
Connection - 3/4" 1"
Temperature range °C 0 - 90
Order number - 43566 43567
