Zone hydraulic units THERM SIM

Heating circuits:

1 ÷ 3 zones

The SIM zone hydraulic unit ensures a simple and elegant connection of the heat source to the heating circuits. The built-in automatic regulation system ensures problem-free operation of the multi-circuit heating system. It can be used when combining circuits with heating bodies and the floor heating, which is the requirement of most modern heating systems.

We supply three different types of zone hydraulic units:

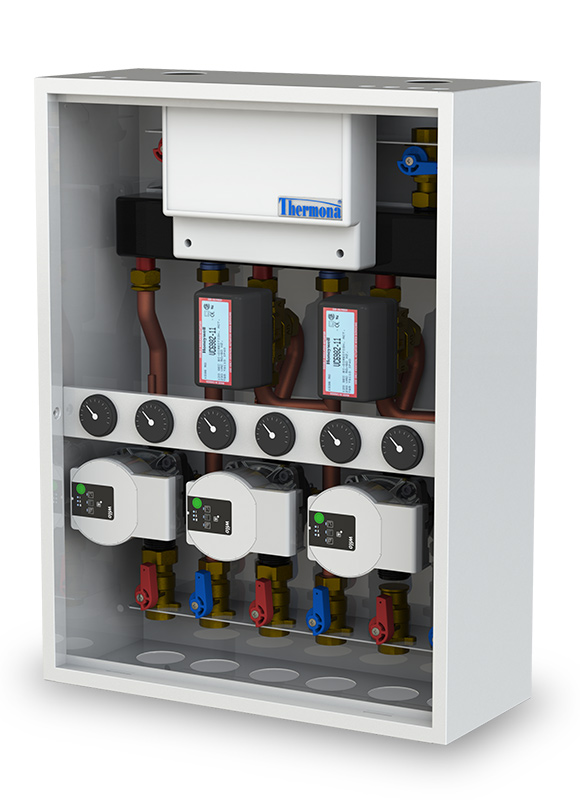

SIM 3Z-21 - two mixed circuits + one not mixed; the unit can regulate three independent heating zones

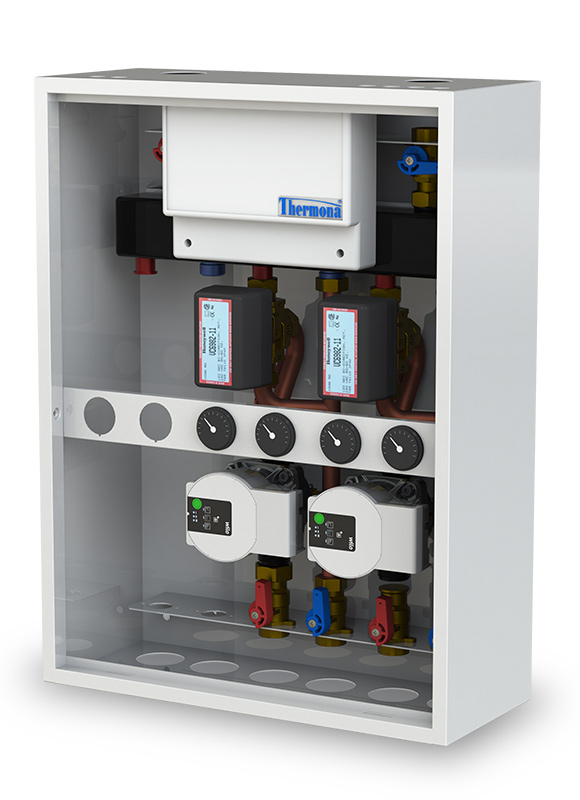

SIM 2Z-20 - two mixed circuits; the unit can regulate two independent heating zones

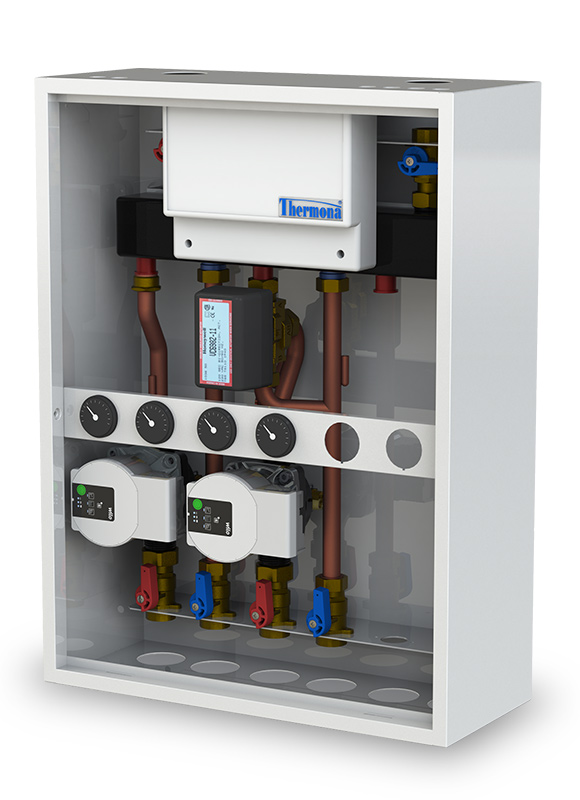

SIM 2Z-11 - one mixing circuit + one not mixed; the unit can regulate two independent heating zones

Each type of solution can be supplied with a Honeywell SZ 10004 built-in zone regulation unit.

Order No.	Type of hydraulic unit	Price
43742	SIM 3Z-21	on request
43745	SIM 3Z-21 with regulation unit SZ	on request
43741	SIM 2Z-20	on request
43744	SIM 2Z-20 with regulation unit SZ	on request
43740	SIM 2Z-11	on request
43743	SIM 2Z-11 with regulation unit SZ	on request

Do you have a question? Do you need installation?

Control of up to three independent heating circuits
Energy saving pumps
Option to control the floor heating circuit in combination with the radiator circuit
Option for the connection of gas or electric boilers up to an output of 30 kW

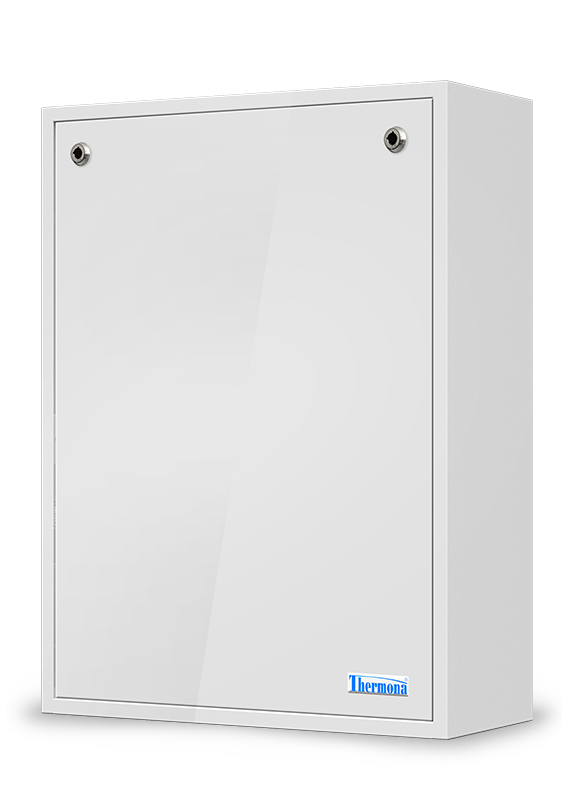

Compact construction and dimensions - hydraulic and regulation elements integrated in the unit
Version with built-in zone regulation unit SZ 10004
Built-in equithermal regulation
Connection to the boiler via OpenTherm+ communication protocol
Simple setting and commissioning of the system
Autonomous electricity supply
