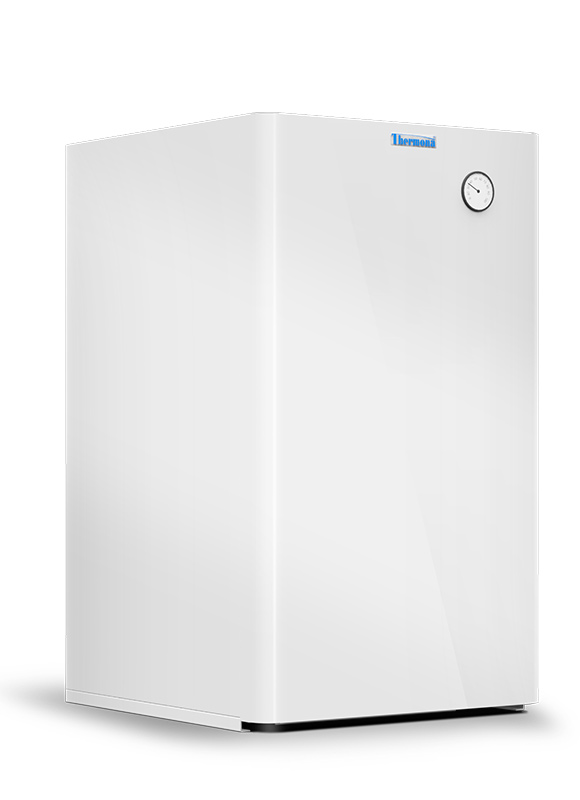

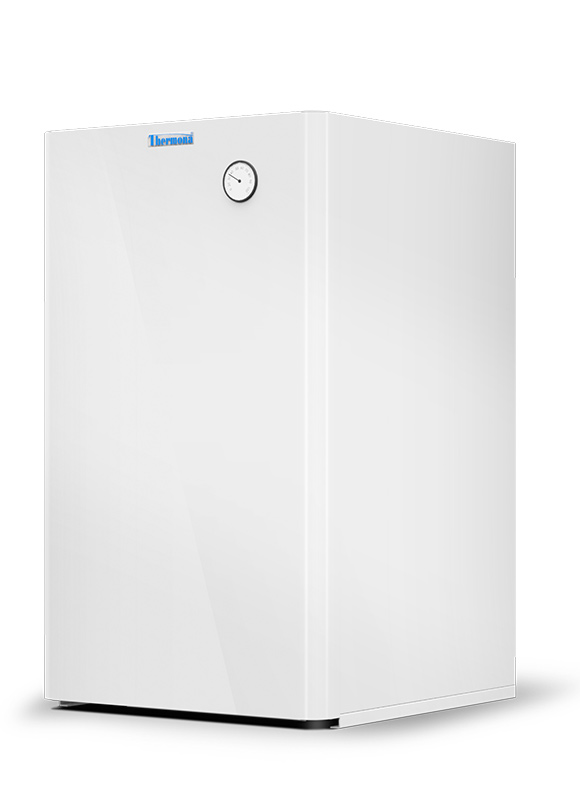

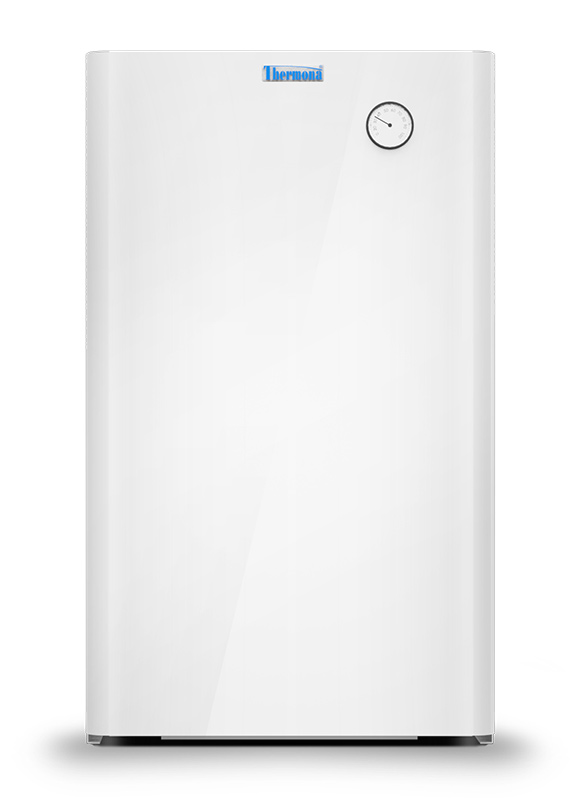

THERM 60/S

Type:	stationary
Volume:	58 l
Exchanger power:	24 kW

THERM 60/S stationary storage tanks with a volume of 58 l are designed for installation under wall-mounted boilers. The heating and utility water is supplied from the upper side of the storage tank. Through their construction and the number of available options, THERM storage tank water heaters provide economical preparation of domestic water via energy from an external source. They are recommended for interior locations.

The storage tank for THERM 60/S heaters is made from steel metal sheet and tested with an over-pressure of 0.9 MPa. The inside of the storage tank is enamelled. The flange is welded to the upper bottom of the storage tank to which the flange cap is screwed. There is a sealing ring between the flange cap and the flange.

Recommended retail price: on request

The energy label of the product

Do you have a question? Do you need installation?

The storage tank for the heater is made of steel metal
The inside of the storage tank is enamelled
High-quality hard polyurethane foam is used for insulation
The storage tank includes an anode bar
The heater is designed for installation under a wall-mounted boiler
The heating and utility water is supplied from on the upper side of the storage tank
From the aesthetic point of view, it completes the design of the boiler and forms one unit

Technical data	Unit	THERM 60/S
Class of energy efficiency	-	B
Volume	l	58
Exchanges output	kW	24
Height / width / depth	mm	830 / 400 / 395
Material	-	smalt
Order number	-	14130.A

Time of heating in the THERM 60/S storage tank

This table was compiled by empirical measurement of the time for heating a storage tank filled with cold water (10°C) and then heated to the temperature stated by the tank thermostat to 60°C. The times are in minutes.
